Akousti-Shield™

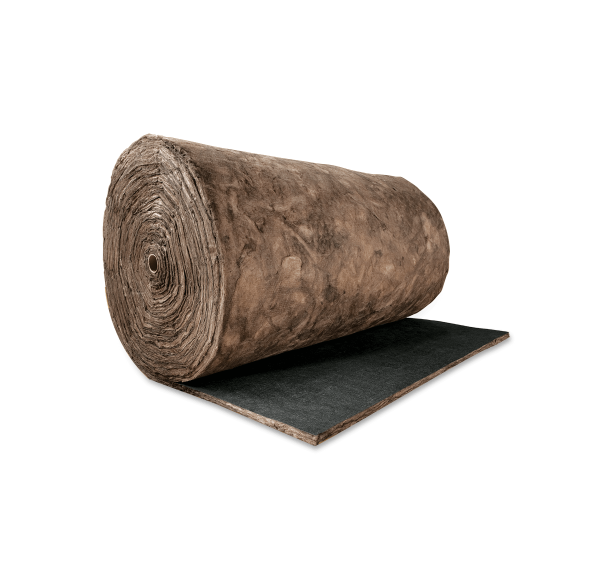

A flexible blanket providing acoustical insulation and a visual barrier, with a black mat facing adhered to one surface. It can be mechanically fastened to walls and covered with fabric, or suspended above linear metal and metal pan ceiling systems to serve as both a visual and acoustical treatment.

Applications

Certifications

Product Features

Sound Control
Designed for spaces where acoustic insulation is a must, such as theaters, sound studios, and public concourses.
Durable & Dark
This flexible insulation has a smooth, tough surface that resists damage during installation, and the black mat facing meets black surface requirements.
Sustainable
Akousti-Shield is made with our bio-based ECOSE® binder and is formaldehyde-free. It’s also made with at least 50% recycled glass.
Product Details
Technical Data
TECHNICAL DATA
PROPERTY (UNIT)TESTPERFORMANCE
CorrosivenessASTM C665Does not accelerate corrosion of steel
CorrosionASTM C1617Pass
Surface Burning Characteristics (flame spread/smoke developed)ASTM E84, UL 723UL/ULC Classified FHC 25/50
Noise Reduction Coefficient
NOISE REDUCTION COEFFICIENTS | ASTM C423, TYPE A MOUNTING
DENSITYTHICKNESSNRC
1.5 PCF
(24 kg/m3 )
1" (25 mm)0.70
2" (51 mm)0.90

Available in 48” (1219 mm) wide rolls in lengths of 100’ or 50’ (30.48 or 15.24 m).

All Product Resources
GREENGUARD Gold - Akousti-Shield
December 2025PDF (859.64 KB)
GREENGUARD - Akousti-Shield
December 2025PDF (848.84 KB)
UL Environmental Claim Validation - Formaldehyde Free - Akousti-Shield
December 2025PDF (747.22 KB)
UL Environmental Claim Validation - Recycled Content - Akousti-Shield
September 2018PDF (677.98 KB)
Safety Data Sheet - Akousti-Shield
October 2020PDF (566.15 KB)
Data Sheet - Akousti-Shield
August 2025PDF (1.35 MB)
Revit File - Akousti-Shield™
December 2022RVT (1.69 MB)
Related Products
Akousti-Board Black™
This heavy-density board provides acoustical insulation and a visual barrier, with a black mat applied to provide a smooth, tough finish. This rigid product is durable and designed to stand up to abuse.
Applications
Thickness
1"; 2"
Width
24"
Length
48"
